Specs
UPC
193308240985
Starter
Electric
Steering Control
Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Front Caster Tires
11 x 4.0-5, smooth tread, semi-pneumatic.
Drive Tires
18 x 8.5-8, 4-ply Turf Master®
Safety Package
Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake
Lever-actuated mechanical compression.
Electrical
12-volt battery with 20-amp alternator.
Standard Features
Enhanced engine hour meter

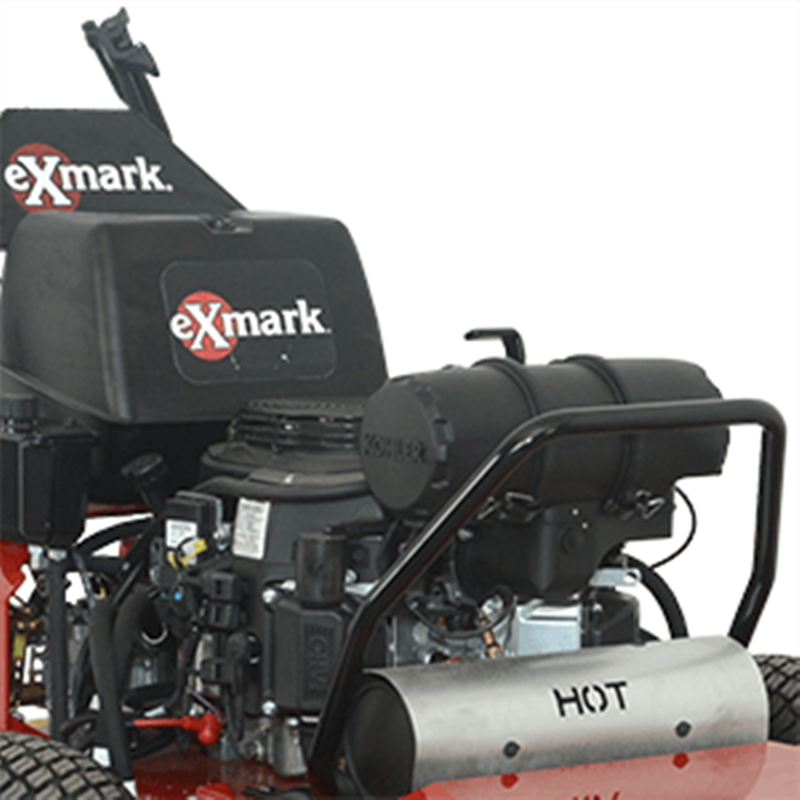

Engine Brand
Kohler
Transmission Speeds
Infinitely Variable
Transmission Brand
Hydro-Gear
Engine Model
ECV730
Engine Displacement
747
Engine Series
Command™ EFI
Fuel System
Electronic Fuel Injected
Speed
Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.
Transmission
Hydrostatic
Drive
Hydro-Drive
Engine Spec
3051
Engine Speed
3,600 rpm
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
5-gallon (18.9-L) fuel tank.
Drive Description
Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.
Fuel Type
Gas EFI
PTO Engagement
Electromagnetic 200 ft-lbs clutch.
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
None
Deck Lift
Manual lift with hairpin from hole to hole for position adjustment.
Carb Compliant
No
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
52"
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights
1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed
Approximately 18,500 fpm.
Blades
3 Blades at 18.00" Length
Width
64.3 in. (163.3 cm)
Height
42.0 in. (106.7 cm)
Length
75.9 in. (192.8 cm)
Curb Weight
690
