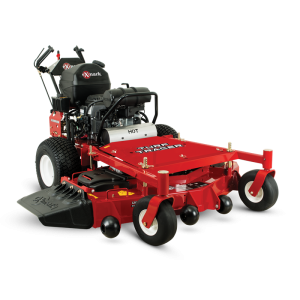

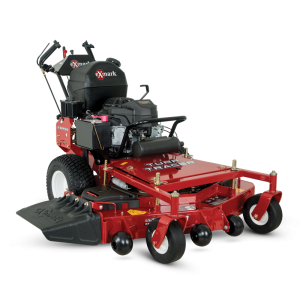

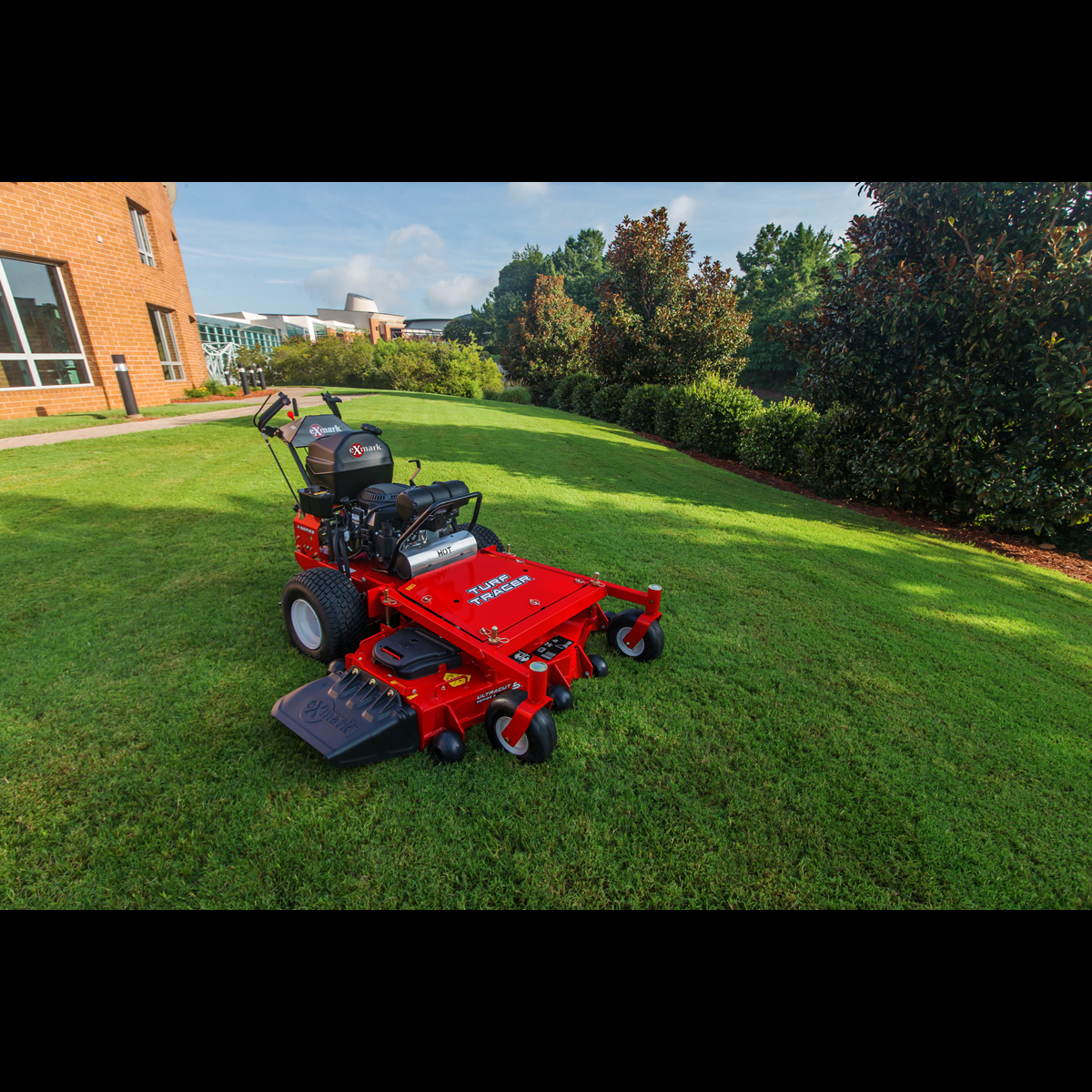

Exmark Turf Tracer X-Series with 21 HP* Kohler EFI ECV650 Engine and 60″ UltraCut Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class. Want to view the rest of our lineup of self-propelled mowers? Check out our full lineup of commercial walk-behind mowers.

Call Us Now

Specs

UPC

193308000152

Steering Control

Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.

Caster Forks

.38" thick caster yoke arms

Front Caster Tires

11 x 4.0-5, smooth tread, semi-pneumatic.

Drive Tires

18 x 8.5-8, 4-ply Turf Master®

Safety Package

Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine

Parking Brake

Lever-actuated mechanical compression.

Electrical

12-volt battery with 20-amp alternator.

Standard Features

Enhanced engine hour meter

Engine Brand

Kohler

Engine Model

ECV650

Engine Displacement

694

Engine Series

Command™ EFI

Fuel System

Electronic Fuel Injected

Speed

Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

3017

Engine Speed

3,600 rpm

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

5-gallon (18.9-L) fuel tank.

Drive Description

Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.

Fuel Type

Gas EFI

PTO Engagement

Electromagnetic 200 ft-lbs clutch.

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

None

Deck Lift

Manual lift with hairpin from hole to hole for position adjustment.

Carb Compliant

No

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

60"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Blade Tip Speed

Approximately 18,500 fpm.

Bag Capacity

3 Blades at 20.5" Length

Blades

3 Blades at 20.5" Length

Width

73.0 in. (185.4 cm)

Height

45.0 in. (114.3 cm)

Length

104.8 in. (266.2 cm)

Curb Weight

840
