Specs
UPC
193308225203
Onboard Intelligence
none
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

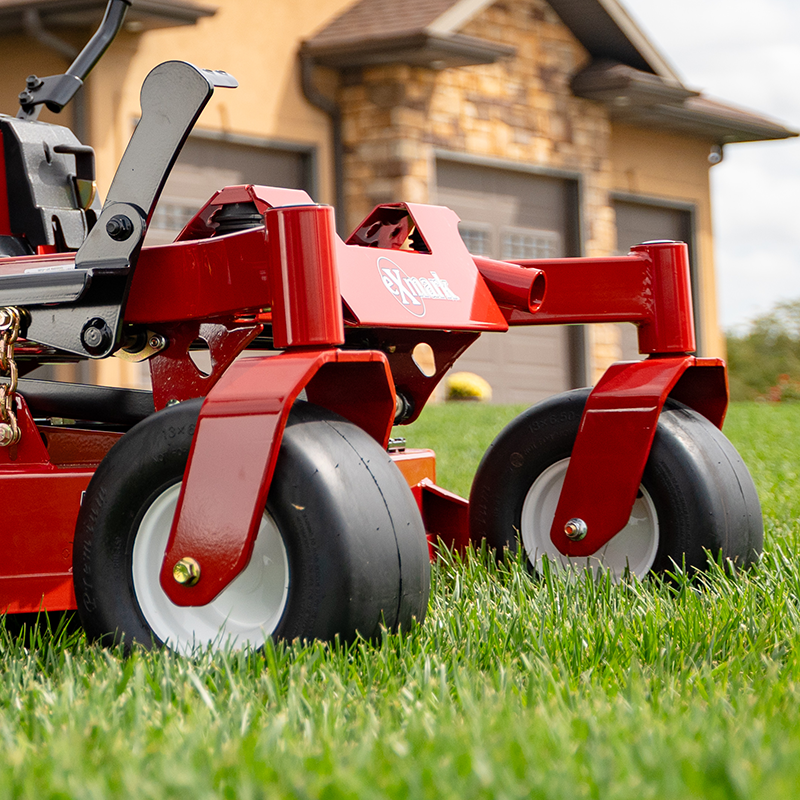

Front Caster Tires
13 x 6.5-6, smooth tread, pneumatic. Sealed Taper Roller Bearings
Drive Tires
24 x 12-12 K3012
Parking Brake
Lever-actuated pawl brake.
Tractor Frame
Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.
Electrical
12-volt battery with 15-amp alternator.
Cup Holder
Yes
Standard Features
Engine hour meter, cup holder, tow hitch and jack receiver

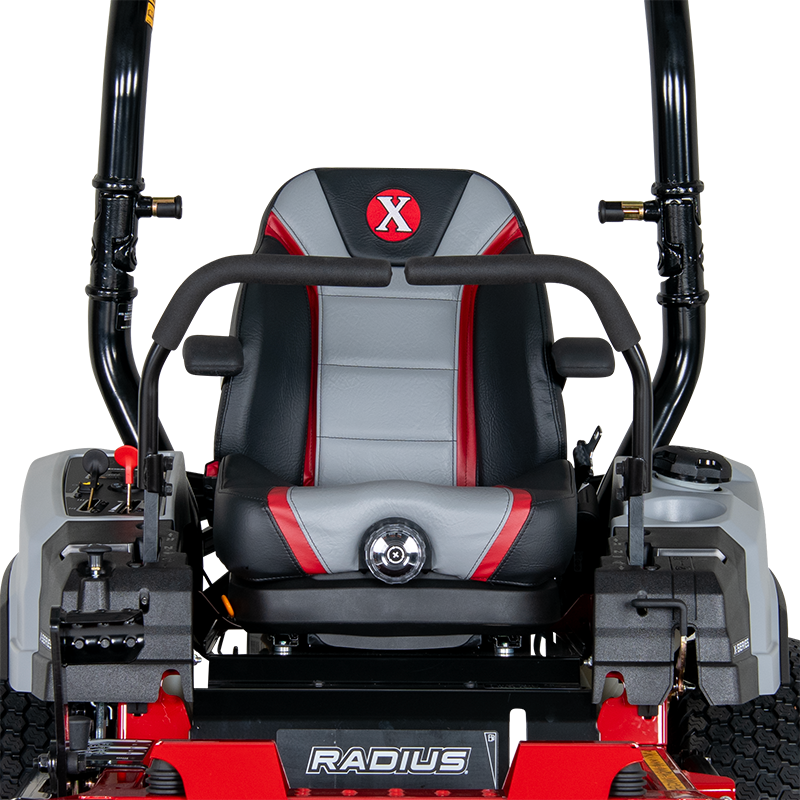

Seat
Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch

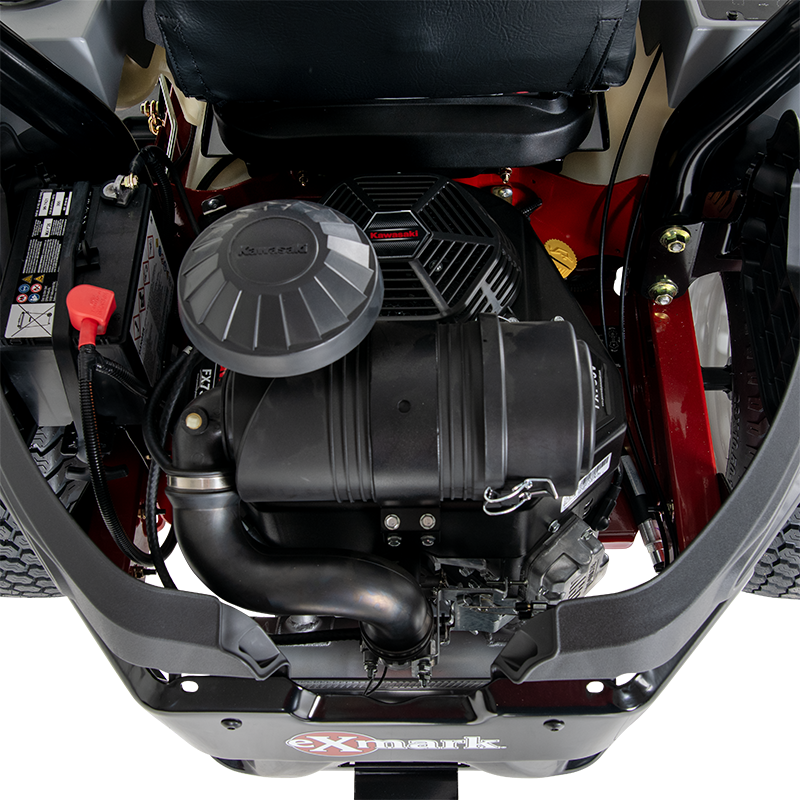

Engine Brand
Kawasaki
Transmission Speeds
Infinitely Variable
Transmission Brand
Hydro-Gear
Engine Model
FX801
Engine Displacement
852cc
Engine Series
V-Twin
Fuel System
Carbureted
Speed
Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse.
Transmission
Hydrostatic
Drive
Hydro-Drive
Engine Spec
FX801V-S04-R
Engine Speed
3,820 rpm
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
7-gallon (26.5-L) single fuel tank with single fill location.
Drive Description
Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Fuel Type
Gas Carbureted
PTO Engagement
MagStop electromagnetic 200-ft-lb clutch
Drive System
Hydro-Drive
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Translucent Visual
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant
No
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
52"
Deck Construction
10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Cutting Heights
1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blade Tip Speed
Approximately 18,500 fpm.
Blades
3 Blades at 18.00" Length
Bag Capacity
N/A
Width
64.3 in (163.3 cm)
Height
70 in (178 cm)
Length
80.3in (204.0 cm)
Curb Weight
992
